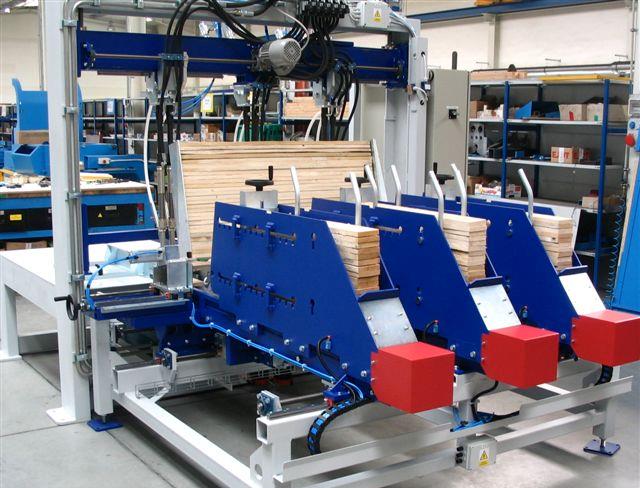

Paletomat PA-180 is modern full automatic conroll servo motion system machine for nailing Decks off 4way pallets or full production of 2way pallets.
Easy changeover, Pallet Builder software. WIFI connection, 6pcs hydraulics Guns, 3 stock for string boards, 1stock for deck boards. Volume capacity -950-1050 pcs/shift.
- Modern full automatic machine heavy dutty construction.
- Hydraulics nailing systém with automatic board feding.
- Free loading nails dimension 35mm-65mm.
- Max. dimension off Deck/pallet 1000x1600mm
- Min. dimension off Deck/pallet 500x600mm
- Height off Deck/pallet MAX/MIN 120/40mm
- Automatic hydraulic clinching of the top deck nails across the stringerboards wood fibers.
- The possibility to use and easily fill up with standard bulk nails in the nail box.
- Detection of that the nails have arrived in each nail tool with auto-repeat picking if not.
- Easy and flexible configuration in control panel with possibility to save the settings for each top deck or skid pallet type.
Example Of Production

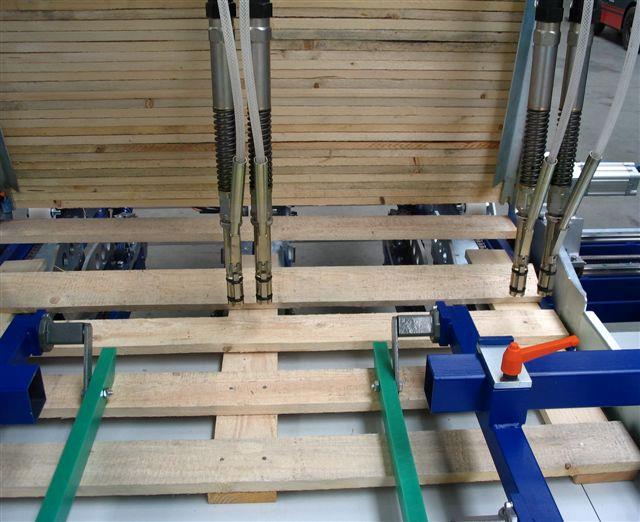

Top deck off 4 way pallet
