Description

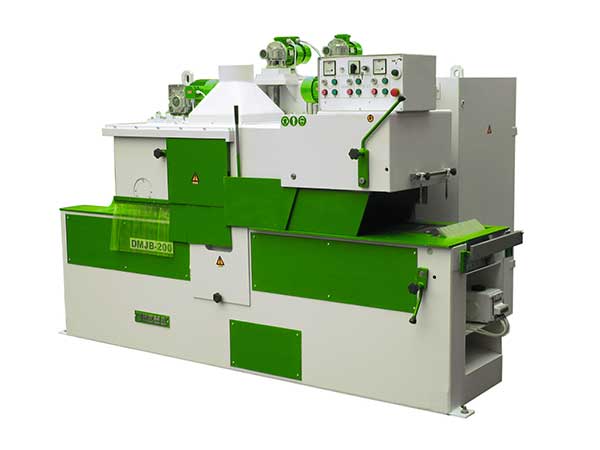

REMA Heavy Duty Twin Arbor Multi-Blade Rip Saw DMJB-200
| Technical Data | |
|---|---|
| Saw Blade Diameter | 350 mm |
| Sawing Height | 25-200 mm |
| Min. Thickness of The Finished Strips | 8 mm |
| Max. Distance Between Extreme Saw Blades | 280 mm |
| Min. Length of Material | 800 mm |
| Main Motor Power | 2×45 kW |
| Spindle Rotation Speed | 3000 rpm |
| Spindle Tip Diameter | 2×80 mm |
| Speed of Working Feed (Stepless Regulation) | 2,5-25 m/min |
| Transporter Width | 300 mm |
| Motor Power of Feed Driving | 3 kW |
| Motor Power of The Pressure Rollers | 2×0,75 kW |
| Extraction Outlet Diameter | 2×200 mm |
| Air Request of Extraction System | 2×3400 m3/h |
| Height of Table Surface | 850 mm |
| Weight | 5500 kg |
